carma::canbus::CanIo Class Reference

CanIo interface. More...

#include <carma/canbus/CanIo.h>

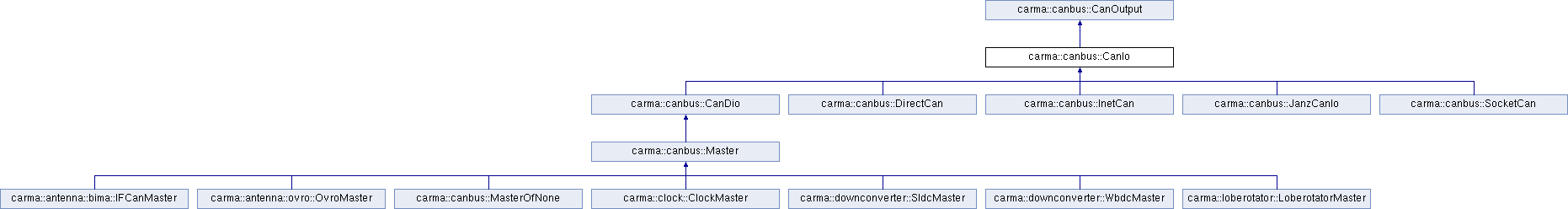

Inheritance diagram for carma::canbus::CanIo:

Public Member Functions
virtual void	clearReadQueue ()
	Clear any underlying read buffers. More...
virtual void	echoAll (bool enable)
	Enable or disable echoing sent messages back through the read interface. More...
virtual BusStatusMap	getBusStatus () const
	Retrieve bus statistics. More...
virtual carma::canbus::Message	getMessage ()=0
	Retrieve a CAN message. More...
virtual void	queueMessage (const Message &msg)
	Queue CAN message to be read for simulation purposes. More...
virtual void	setTimestampEchoLatency (int tsLatency, busIdType busId)
	Set timestamp echo latency. More...
virtual	~CanIo ()
	Virtual destructor. More...
Public Member Functions inherited from carma::canbus::CanOutput
virtual void	postMessage (const carma::canbus::Message &msg, carma::canbus::txPriorityType prio=carma::canbus::NORMAL)=0
	Post a CAN message. More...

Detailed Description

CanIo interface.

Abstract base class to define core CANbus communication.

Definition at line 22 of file CanIo.h.

Constructor & Destructor Documentation

virtual carma::canbus::CanIo::~CanIo ( )

virtual

Virtual destructor.

Assures that a call to destroy CanIo memory will actually destroy the inherited class it came from.

Member Function Documentation

virtual void carma::canbus::CanIo::clearReadQueue ( )

virtual

Clear any underlying read buffers.

Useful for startup when we want to begin from a known reset state. Default implementation is a no-op.

Reimplemented in carma::canbus::JanzCanIo, and carma::canbus::CanDio.

virtual void carma::canbus::CanIo::echoAll ( bool  enable )

virtual

Enable or disable echoing sent messages back through the read interface.

The default implementation is a no-op.

Parameters

enable

Echo CAN messages if true, don't if false.

Reimplemented in carma::canbus::JanzCanIo, carma::canbus::CanDio, and carma::canbus::SocketCan.

virtual BusStatusMap carma::canbus::CanIo::getBusStatus ( ) const

virtual

Retrieve bus statistics.

The default implementation returns an empty BusStatusMap.

Returns

carma::canbus::BusStatusMap

Reimplemented in carma::canbus::JanzCanIo, and carma::canbus::SocketCan.

virtual carma::canbus::Message carma::canbus::CanIo::getMessage ( )

pure virtual

Retrieve a CAN message.

This routine should block until a message is available.

Returns

carma::canbus::Message object.

Implemented in carma::canbus::JanzCanIo, carma::canbus::CanDio, carma::canbus::DirectCan, carma::canbus::InetCan, and carma::canbus::SocketCan.

virtual void carma::canbus::CanIo::queueMessage ( const Message &  msg )

virtual

Queue CAN message to be read for simulation purposes.

By default this method is a no-op.

Parameters

msg	Message object to queue.

Reimplemented in carma::canbus::JanzCanIo, and carma::canbus::CanDio.

virtual void carma::canbus::CanIo::setTimestampEchoLatency ( int  tsLatency, busIdType  busId  )

virtual

Set timestamp echo latency.

By default this method is a no-op.

Parameters

tsLatency	Timestamp latency in microseconds.
busId	Bus identifier.

Reimplemented in carma::canbus::JanzCanIo, and carma::canbus::CanDio.

---

The documentation for this class was generated from the following file:

• carma/canbus/CanIo.h
