manticore::PACS Class Reference

PACS detector class. More...

#include <PACS.h>

Inheritance diagram for manticore::PACS:

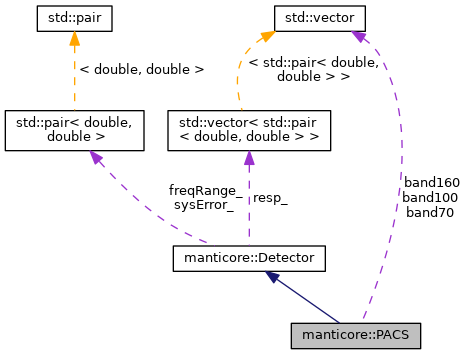

Collaboration diagram for manticore::PACS:

Public Member Functions
	PACS (unsigned band=160, bool extend=true)
	Default constructor. More...
	~PACS ()=default
	Destructor. More...
virtual void	init ()
	Initializes detector characteristics. More...
virtual std::string	name () const
	Official detector name (INSTRUMENT-BAND). More...
Public Member Functions inherited from manticore::Detector
	Detector (bool extend=true) noexcept
	Default constructor. More...
virtual	~Detector ()
	Destructor. More...
virtual double	ccf (const Graybody &gray, double T, double Sigma=1.0) const
	Color correction factor. More...
virtual double	freqBand () const noexcept
	Reference band center frequency (Hz). More...
virtual std::pair< double, double >	freqRange () const noexcept
	Frequency range containing significant response. More...
virtual double	freqWidth () const noexcept
	Effective flux-conversion bandwidth \(\Delta\nu\) (Hz). More...
bool	isExtended () const noexcept
	Whether extended source detection is enabled. More...
virtual double	response (double nu, gsl_interp_accel *acc=nullptr) const
	Absolute spectral response function. More...
virtual std::pair< double, double >	sysError () const noexcept
	Systematic calibration error (correlated, uncorrelated) between bands. More...

Protected Attributes
unsigned	band_
	Fiducial detector band (microns). More...
Protected Attributes inherited from manticore::Detector
double	center_ = 0.0
	Effective band center (Hz). More...
bool	extend_
	Default to extended (else point) source observation. More...
std::pair< double, double >	freqRange_
	Response edge frequencies (Hz). More...
tableType	resp_
	Spectral response table. More...
gsl_spline *	spline_ = nullptr
	Response interpolator. More...
std::pair< double, double >	sysError_
	Relative systematic errors (global/instrument, detector/band). More...
double	width_ = 0.0
	Effective (flux) bandwidth (Hz). More...

Static Protected Attributes
static tableType	band100
	Response table for 100 micron band. More...
static tableType	band160
	Response table for 160 micron band. More...
static tableType	band70
	Response table for 70 micron band. More...

Additional Inherited Members
Protected Types inherited from manticore::Detector
using	tableType = std::vector< std::pair< double, double > >
	Detector response table type. More...
Protected Member Functions inherited from manticore::Detector
void	calcWidth ()
	Calculates effective bandwidth using standard prescription. More...

Detailed Description

PACS detector class.

This is a concrete Detector class representing the Herschel PACS photometer.

Note

The response for this detector is treated the same for both point and extended sources (the PACS handbook provides no guidance otherwise).

Definition at line 17 of file PACS.h.

Constructor & Destructor Documentation

PACS()

manticore::PACS::PACS ( unsigned  band = 160, bool  extend = true  )

inline

Default constructor.

Parameters

[in]	band	Wavelength band (microns).
[in]	extend	Whether to use extended source detection properties.

Definition at line 22 of file PACS.h.

~PACS()

manticore::PACS::~PACS ( )

default

Destructor.

Member Function Documentation

init()

void manticore::PACS::init ( )

virtual

Initializes detector characteristics.

Reimplemented from manticore::Detector.

Definition at line 1067 of file PACS.cc.

References band100, band160, band70, band_, manticore::c_light, manticore::Detector::center_, std::pair::first, manticore::Detector::init(), MU_EXCEPTION, manticore::Detector::resp_, std::pair::second, and manticore::Detector::sysError_.

Referenced by manticore::ccfCheck().

name()

virtual std::string manticore::PACS::name ( ) const

inlinevirtual

Official detector name (INSTRUMENT-BAND).

Implements manticore::Detector.

Definition at line 28 of file PACS.h.

References band_, and std::to_string().

Member Data Documentation

band100

Detector::tableType manticore::PACS::band100

staticprotected

Response table for 100 micron band.

PACS 100 micron response.

Net bolometer and "green" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 35 of file PACS.h.

Referenced by init().

band160

Detector::tableType manticore::PACS::band160

staticprotected

Response table for 160 micron band.

PACS 160 micron response.

Net bolometer and "red" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 35 of file PACS.h.

Referenced by init().

band70

Detector::tableType manticore::PACS::band70

staticprotected

Response table for 70 micron band.

PACS 70 micron response.

Net bolometer and "blue" filter response, truncated to the frequency range for which the response \(R(\nu) > 10^{-4}\). Frequency is in Hz.

Definition at line 35 of file PACS.h.

Referenced by init().

band_

unsigned manticore::PACS::band_

protected

Fiducial detector band (microns).

Definition at line 39 of file PACS.h.

Referenced by init(), and name().

---

The documentation for this class was generated from the following files:

• PACS.h
• PACS.cc
