Carma Spectral Line Downconverter CAN module control interface. More...

import "carma/downconverter/spectral/SpectralDownconverterControl.idl";

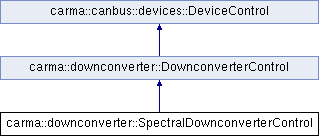

Inheritance diagram for carma::downconverter::SpectralDownconverterControl:

Public Member Functions
void	disableCommandLogging () raises (carma::util::UserException)
	Disable command logging. More...

void	enableCommandLogging () raises (carma::util::UserException)
	Enable command logging. More...

void	selectOutputFilter (in FilterType filter) raises (carma::util::UserException)
	Select which of the available output bandwidth defining filters to use. More...

void	selectSideband (in SidebandType sideband) raises (carma::util::UserException)
	Select which sideband the single sideband downconverter is to use. More...

void	setIModulatorVoltage (in short I) raises (carma::util::UserException)
	Manually set the differential voltage on the I channel for the 90 degree I/Q modulator. More...

void	setLOFrequency (in double lofreq) raises (carma::util::UserException)
	Sends the frequency of the 2nd LO being used for this downconverter module. More...

void	setQModulatorVoltage (in short Q) raises (carma::util::UserException)
	Manually set the differential voltage on the Q channel for the 90 degree I/Q modulator. More...

Public Member Functions inherited from carma::downconverter::DownconverterControl
boolean	checkIfOutputPower (in float power, in float delta) raises (carma::util::UserException)
	Check that IF Output power is within a specified range. More...

void	enableIfOutAlc (in boolean enable) raises (carma::util::UserException)
	Enable IF output Automatic Level Control (ALC). More...

void	enableRfInputAmp (in boolean enable) raises (carma::util::UserException)
	Turn RF input amplifier on or off. More...

void	setIfOut (in float ifout) raises (carma::util::UserException)
	Set IF output power to requested level. More...

void	setIfOutAtten (in float atten) raises (carma::util::UserException)
	Set IF output attenuation to requested level. More...

void	setIfOutPreset () raises (carma::util::UserException)
	Set IF output power to preset level. More...

void	setPsys (in float psys) raises (carma::util::UserException)
	Set the psys power level to indicated level. More...

void	setPsysAtten (in float atten) raises (carma::util::UserException)
	Set psys attenutation to indicated level. More...

void	setPsysPreset () raises (carma::util::UserException)
	Set the psys power level to preset level. More...

Public Member Functions inherited from carma::canbus::devices::DeviceControl
boolean	isOnline () raises (carma::util::UserException)
	Is device ONLINE? A device is considered ONLINE if it is actively sending monitor packets on the frame timescale. More...

void	reset () raises (carma::util::UserException)
	Reset the module via CAN reset message. More...

void	startChannelOneFastSampling (in unsigned short fastItem) raises (carma::util::UserException)
	Start fast sampling data from this node on channel 1. More...

void	startChannelTwoFastSampling (in unsigned short fastItem) raises (carma::util::UserException)
	Start fast sampling data from this node on channel 2. More...

void	stopChannelOneFastSampling () raises (carma::util::UserException)
	Stop fast sampling on channel 1 for any device. More...

void	stopChannelTwoFastSampling () raises (carma::util::UserException)
	Stop fast sampling on channel 2 for any device. More...

Additional Inherited Members
Public Types inherited from carma::downconverter::DownconverterControl
enum	FilterType { FILTER_490MHZ, FILTER_240MHZ, FILTER_119MHZ, FILTER_58MHZ, FILTER_280MHZ }
	Valid output bandwidth filter types. More...

enum	SidebandType { UPPER_SIDEBAND, LOWER_SIDEBAND }
	Sideband type. More...

Detailed Description

Carma Spectral Line Downconverter CAN module control interface.

Definition at line 20 of file SpectralDownconverterControl.idl.

Member Function Documentation

void carma::downconverter::SpectralDownconverterControl::disableCommandLogging	(		)
raises	(	carma::util::UserException
	)

Disable command logging.

Useful for temporarily disabling logging for commands which will knowingly talk to many downconverters (and hence produce lots of command logs).

void carma::downconverter::SpectralDownconverterControl::enableCommandLogging	(		)
raises	(	carma::util::UserException
	)

Enable command logging.

Command logging is enabled by default, you should only need to enable it if it has been disabled for some reason.

void carma::downconverter::SpectralDownconverterControl::selectOutputFilter	(	in FilterType	filter	)
raises	(	carma::util::UserException
	)

Select which of the available output bandwidth defining filters to use.

Parameters

filter Requested output filter.

void carma::downconverter::SpectralDownconverterControl::selectSideband	(	in SidebandType	sideband	)
raises	(	carma::util::UserException
	)

Select which sideband the single sideband downconverter is to use.

Parameters

sideband Requested sideband.

void carma::downconverter::SpectralDownconverterControl::setIModulatorVoltage	(	in short	I	)
raises	(	carma::util::UserException
	)

Manually set the differential voltage on the I channel for the 90 degree I/Q modulator.

Parameters

I	Differential voltage on the I channel in mV.

void carma::downconverter::SpectralDownconverterControl::setLOFrequency	(	in double	lofreq	)
raises	(	carma::util::UserException
	)

Sends the frequency of the 2nd LO being used for this downconverter module.

The module uses the frequency and sideband to determine the required I and Q modulator settings.

Parameters

lofreq Requested frequency in GHz.

void carma::downconverter::SpectralDownconverterControl::setQModulatorVoltage	(	in short	Q	)
raises	(	carma::util::UserException
	)

Manually set the differential voltage on the Q channel for the 90 degree I/Q modulator.

Parameters

Q	Differential voltage on the Q channel in mV.

The documentation for this interface was generated from the following file:

carma/downconverter/spectral/SpectralDownconverterControl.idl
