Container that handles layout of components with a "BoxLayout". More...

#include <carma/ui/rtd/common/RtDisplay.h>

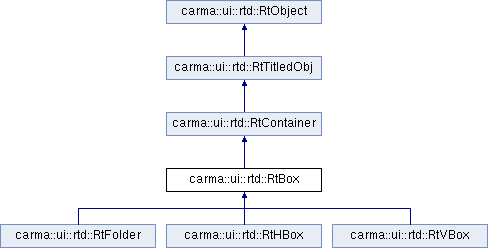

Inheritance diagram for carma::ui::rtd::RtBox:

Public Types
enum	BoxType { BOX_HORIZONTAL, BOX_VERTICAL, BOX_FOLDER }

enum	StretchType { STRETCH_PROPORTIONAL, STRETCH_SPRING }

Public Member Functions
virtual void	serialize (bool initialize, int fontSize,::rtdproto::RtObject *rtobj)
	Creates static description of container to stdout. More...

void	setProp ()
	Set stretchType to proportional. More...

void	setSpring ()
	Set stretchType to SPRING. More...

void	setStretchFactor (double stretchFactor)
	Set stretch factor. More...

Public Member Functions inherited from carma::ui::rtd::RtContainer
RtObjectPtr	add (RtObjectPtr rtObject)
	Insert an object into the container. More...

Border	getBorder () const

::size_t	getNumObjects () const
	Get the number of objects in the container. More...

RtObjectPtr	getObj (::size_t index) const
	Get object from the container by index. More...

RtObjectPtr	replace (unsigned int i, RtObjectPtr rtObject)
	Replace an object in the container. More...

RtObjectPtr	replace (RtObjectPtr oldObj, RtObjectPtr newObj)

void	setBorder (Border border)
	Set the border code. More...

virtual void	update ()
	Update all objects contained by container. More...

virtual	~RtContainer ()
	Destructor. More...

Public Member Functions inherited from carma::ui::rtd::RtTitledObj
std::string	getTitle ()
	Get title. More...

void	setTitle (const std::string &title)
	Set title for object. More...

Public Member Functions inherited from carma::ui::rtd::RtObject
void	appendToolTipText (const std::string &text)
	Append more text to the existing tool tip text. More...

Layout	getLayout () const
	Get the layout for this object. More...

std::string	getToolTipText ()

void	setFontSize (int fontSize)
	Set the absolute font size for this object. More...

void	setLayout (Layout layout)
	Set the layout for this object. More...

void	setToolTipText (const std::string &text)
	Set the tool tip text for this RtObject. More...

virtual	~RtObject ()
	Destructor. More...

Protected Member Functions
	RtBox (BoxType type, const std::string &title)
	Constructor. More...

	RtBox (BoxType type, Border border)
	Constructor. More...

	RtBox (BoxType type, const std::string &title, Border border)
	Constructor. More...

Protected Member Functions inherited from carma::ui::rtd::RtContainer
	RtContainer ()
	Constructor. More...

	RtContainer (const ::std::string &title)
	Constructor. More...

	RtContainer (Border border)
	Constructor. More...

	RtContainer (const ::std::string &title, Border border)
	Constructor. More...

Protected Member Functions inherited from carma::ui::rtd::RtTitledObj
	RtTitledObj (const std::string &title)
	Constructor. More...

Protected Member Functions inherited from carma::ui::rtd::RtObject
int	getFontSize (int parentFontSize) const
	Get the absolute font size for this object. More...

int	getFontSize () const
	Get the absolute font size for this object. More...

	RtObject ()
	Constructor. More...

Additional Inherited Members
Protected Types inherited from carma::ui::rtd::RtContainer
typedef ::std::vector < RtObjectPtr >	ObjectContainerType

Protected Attributes inherited from carma::ui::rtd::RtContainer
size_t	numObjects_

ObjectContainerType	objects_

Protected Attributes inherited from carma::ui::rtd::RtTitledObj
std::string	title_
	Object title. More...

Detailed Description

Container that handles layout of components with a "BoxLayout".

Component layout is controlled by the types listed below, but an interface is not yet provided for all components.

The stretchType controls sizing of components in direction parallel to the layout. Proportional and springs should not be used in the same layout, as the springs will take all of the free space so the proportional will not get a chance to grow. If contraction is necessary because there is not enough space then all the components except INCOMPRESSIBLE ones will be scaled proportionally. In general, extra space is taken by the most agressive components in the layout first, leaving little or none to the others. Most agressive is SPRING followed by PROPORTIONAL, then FRACTIONAL. PROPORTIONAL and FRACTIONAL will split extra space with the FRACTIONALs being treated as having a weight of 1.

Summary of Stretch types:

'p' PROPORTIONAL: Extra space divided according to width and weight (stretchFactor)
's' SPRING: Takes extra in proportion to its springiness (stretchFactor)
INCOMPRESSIBLE: Will not be squeezed if short of space
FIXED: No expansion.
FIXED_GROUP: Width fixed to max width of all in FIXED_GROUP
FRACTIONAL: Extra space divided evenly between FRACTIONAL components
DISCRETE_SPRING: Takes extra in proportion to its springiness, tries to set component size, then accepts size component returns. This is for components whose size comes in discrete units.

Definition at line 1918 of file RtDisplay.h.

Constructor & Destructor Documentation

carma::ui::rtd::RtBox::RtBox	(	BoxType	type,
		const std::string &	title
	)

protected

Constructor.

Parameters

title title for box

See Also: RtContainer

carma::ui::rtd::RtBox::RtBox	(	BoxType	type,
		Border	border
	)

protected

Constructor.

Parameters

border single character codes for the border.

See Also: RtContainer

carma::ui::rtd::RtBox::RtBox	(	BoxType	type,
		const std::string &	title,
		Border	border
	)

protected

Constructor.

Parameters

title	title for box
border	single character codes for the border.

See Also: RtContainer

Member Function Documentation

virtual void carma::ui::rtd::RtBox::serialize	(	bool	initialize,
		int	fontSize,
		::rtdproto::RtObject *	rtobj
	)

virtual

Creates static description of container to stdout.

Implements carma::ui::rtd::RtContainer.

void carma::ui::rtd::RtBox::setProp ( )

Set stretchType to proportional.

void carma::ui::rtd::RtBox::setSpring ( )

Set stretchType to SPRING.

void carma::ui::rtd::RtBox::setStretchFactor ( double stretchFactor )

Set stretch factor.

The documentation for this class was generated from the following file:

carma/ui/rtd/common/RtDisplay.h
