Base class for all real value monitor points (float, double, etc). More...

#include <carma/monitor/monitorPointSpecializations.h>

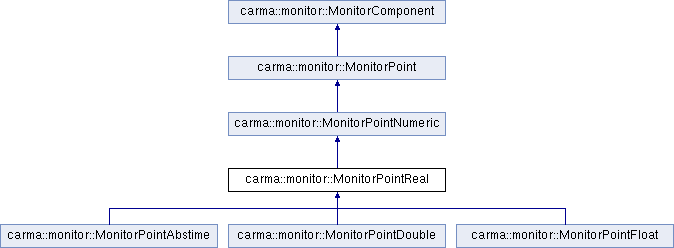

Inheritance diagram for carma::monitor::MonitorPointReal:

Public Member Functions
	MonitorPointReal (const std::string &name, MonitorValueType monitorValueType, MONITOR_POINT_TYPE monitorPointType=MONITOR)
	Constructor. More...

virtual	~MonitorPointReal ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorPointNumeric
virtual void	accumulate (MonitorPointAverageNumeric &average) const
	Accumulates data from monitor point samples belonging this monitor point. More...

virtual void	accumulateAverage (MonitorPointAverageNumeric &accumulator)
	Accumulates pre-calculated average value from current monitor point for computing averages. More...

virtual enum MonitorPoint::VALIDITY	accumulateSample (MonitorPointAverageNumeric &average, int index) const
	Accumulates data from one monitor point sample (sample index == index) belonging this monitor point. More...

double	getAccumulatedAverageDouble (const MonitorPointAverageNumeric &average) const
	Computes average from accumulated data in MonitorPointAverageNumeric object. More...

virtual double	getAveNumeric () const =0
	Returns average sample value as a double. More...

double	getMaxValueDouble (const MonitorPointAverageNumeric &average) const
	Returns maximum value from accumulated data in MonitorPointAverageNumeric object. More...

double	getMinValueDouble (const MonitorPointAverageNumeric &average) const
	Returns minimum value from accumulated data in MonitorPointAverageNumeric object. More...

virtual double	getValueNumeric (int sampleIndex) const =0
	Returns sample value as a double. More...

bool	operator== (const MonitorComponent &component) const
	Compares monitor point for equality to the monitor component passed. More...

virtual void	resetAccumulator (MonitorPointAverageNumeric &average) const
	Resets accumulators and sample count for computing averages. More...

void	setTimeSeries (bool timeSeries)
	Determines whether data should be interpreted as time series or as an array (spectrum) when there are multiple samples per frame. More...

virtual	~MonitorPointNumeric ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorPoint
std::string	archivePriorityToString () const
	Get a string for the archive priority for this monitor point. More...

void	checkThreshold (const MonitorPointThreshold &threshold) const
	Method checks that threshold object corresponds to this monitor point - checks to see that threshold's tagID == this monitor point's tagID, and that value type of threshold == value type of this monitor point. More...

void	clearComment ()
	Clear all comment attributes for the monitor point. More...

virtual std::string	dumpSamples (bool includeAverage=true, bool includeValidity=true) const
	Create a string with sample and average values and validities. More...

bool	errorHighDefaultIsSet () const
	Returns true if a default value was set for errorHigh for this monitor point. More...

bool	errorLowDefaultIsSet () const
	Returns true if a default value was set for errorLow for this monitor point. More...

virtual void	evaluateTolerance (const MonitorPointThreshold &threshold)
	Set the validity flags for the MonitorPoint using the threshold limits stored in the input MonitorPointThreshold object. More...

ARCHIVE_PRIORITY	getArchivePriority () const
	Get the archive priority. More...

virtual std::string	getAverageToString () const =0
	Abstract method that returns the average value as a string. More...

virtual VALIDITY	getAveValidity () const
	Get the validity for the average. More...

BLANKING_FLAGGING	getBlankingFlagging () const
	Get the blanking/flagging flag for the average. More...

std::string	getComment () const
	Get a comment for the monitor point. More...

double	getCommentTime () const
	Get time last comment was inserted. More...

std::string	getCommentUser () const
	Get username that generated comment for the monitor point. More...

std::string	getCoreValueAsString (int sampleIndex=0) const
	Get value as a string using the underlying basic type representation. More...

MonitorValue	getErrorHighDefault () const
	Get the upper error default threshold. More...

MonitorValue	getErrorLowDefault () const
	Get the upper error default threshold. More...

MonitorPointSample	getMonitorPointSample (int sampleIndex) const
	Get the monitor point sample. More...

MonitorPointSample	getMonitorPointSample0 () const

MONITOR_POINT_TYPE	getMonitorPointType () const
	Get the type of the monitor point. More...

int	getNumSamples () const
	Get the number of samples per frame. More...

int	getNumValidSamples () const
	Get the number of valid samples per frame. More...

std::string	getPaddedAverageString (int width) const
	Gets the average value as a string, padded to requested width. More...

std::string	getPaddedAverageString () const
	Gets the average value as a string, padded to internal width. More...

std::string	getPaddedValueString (int width, int sampleIndex) const
	Gets the data value as a string, padded to requested width. More...

std::string	getPaddedValueString (int sampleIndex) const
	Gets the data value as a string, padded to internal width. More...

short	getPrecision () const
	Get the number of digits to the right of the decimal point when translating the value to a string. More...

MonitorPointSample	getSampleAverage () const

tagIDType	getTagID () const
	Get the tagID (unique identifier of monitor point). More...

std::string	getUnits () const
	Get the units string for the monitor point. More...

int	getUpdateInterval () const
	Get the basic sampling update interval in frames. More...

VALIDITY	getValidity (int sampleIndex) const
	Get the validity flag for a sample. More...

VALIDITY	getValidity () const

virtual std::string	getValueToString (int sampleIndex) const =0
	Abstract method that returns the data value as a string. More...

MonitorValueType	getValuetype () const
	Get the datatype of the value. More...

MonitorValue	getWarnHighDefault () const
	Get the upper warning default threshold. More...

MonitorValue	getWarnLowDefault () const
	Get the lower warning default threshold. More...

virtual short	getWidth () const
	Get the string length to use when interpreting the value to a string. More...

bool	hasAllData () const
	See if all MPs in this component and below have data samples. More...

virtual ::std::string	hierarchyToString (bool canonical=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual ::std::string	hierarchyToStringAverage (bool canonical=false, bool verbose=false, bool value=true, int indent=0, int levels=-1) const
	Dump this and all contained monitor components to a string. More...

virtual void	hierarchyToVector (::std::vector< ::std::string > &hierarchyList, bool canonical=false, bool verbose=false, int sampleIndex=0) const
	Dump this and all contained monitor component strings into a map hierarchy. More...

bool	isAveValid () const
	Check to see if the average is valid. More...

virtual bool	isMonitorPoint () const
	Identifies this component as a MonitorPoint or any derivative Should be over-ridden by the MonitorPoint class; others that don't derive from MP can use this default implementation. More...

bool	isPersistent () const
	Returns the persistent state of the data. More...

bool	isSnapshotAverage () const
	Returns state of snapshot averaging for this MP. More...

bool	isTimeSeries () const
	Are multiple samples in a frame a time series or an array. More...

bool	isValid (int sampleIndex) const
	Check if this monitor point validity is any of the valid states. More...

bool	isValid () const

virtual std::string	leafToString (bool verbose=false, bool value=true, int sampleIndex=0) const
	Dump all leaf nodes below this component to a string. More...

	MonitorPoint (const std::string &name, MonitorValueType valuetype, MONITOR_POINT_TYPE monitorPointType=MONITOR)
	Constructor, name is later used to lookup the tagID. More...

virtual std::string	monitorPointTags (bool untagged=false) const
	Write list of monitor points and their tagIDs to a string, one monitor point per line. More...

std::string	monitorPointTypeToString () const
	Get a string representation for the monitor point type of this monitor point. More...

virtual bool	operator< (const MonitorPoint &rhs) const
	Compares monitor point for precedence to the one passed. More...

virtual bool	operator== (const MonitorPoint &rhs) const
	Compares monitor point for equality to the one passed. More...

void	setAllValidity (VALIDITY validity, bool markMpAsModified=true) const
	Set the validity for all samples and the average. More...

void	setArchivePriority (ARCHIVE_PRIORITY priority)
	Set the archive priority Priority may be used by archiver to control data volume.,. More...

void	setAveValidity (VALIDITY validity) const
	Set the validity for the average. More...

void	setBlankingFlagging (BLANKING_FLAGGING flag) const
	Set the blanking/flagging flag for the average. More...

void	setComment (const std::string &text)
	Set a comment for the monitor point. More...

void	setComment (const std::string &text, const std::string &user, double mjd)
	Set all comment attributes for the monitor point. More...

void	setDefaultArchivePriority (ARCHIVE_PRIORITY priority)
	Set the default archive priority If the archive priority is set to DEFAULT, it is replaced with the new priority. More...

void	setErrorHighDefault (const MonitorValue threshold)
	Set the upper error default threshold. More...

void	setErrorLowDefault (const MonitorValue threshold)
	Set the upper error default threshold. More...

void	setMonitorPointHeader (MonitorPointHeader header)
	Set the monitor point header. More...

void	setNoData () const
	Recursively mark all data samples as INVALID_NO_DATA. More...

virtual void	setNumSamples (int nSamples) const
	Set the number of samples per frame. More...

void	setPersistent (bool persistent)
	Set the persistent state of the data. More...

void	setPrecision (short precision)
	Set the number of digits to the right of the decimal point when translating the value to a string. More...

void	setSnapshotAverage (bool state)
	Controls whether averaging is done as a normal true average or if it is just a snapshot of the last value. More...

void	setTagID (tagIDType tagID, bool assignedOTF)
	Set tagID. More...

void	setUnits (const std::string &units)
	Get the units string for the monitor point. More...

void	setUpdateInterval (int interval)
	Set the basic sampling update interval. More...

void	setValidity (VALIDITY validity, int sampleIndex=0) const
	Set the validity for a single sample. More...

void	setWarnHighDefault (const MonitorValue threshold)
	Set the upper warning default threshold. More...

void	setWarnLowDefault (const MonitorValue threshold)
	Set the lower warning default threshold. More...

void	setWidth (short width) const
	Set the maximum width(length) of the string for interpreting the value to a string. More...

std::string	toString (bool canonicalName=false, bool verbose=false, bool value=true, int sampleIndex=0, int indent=0) const
	Write this monitor component to a string. More...

std::string	toStringAverage (bool canonicalName=false, bool verbose=false, bool value=true, int indent=0) const
	Write this monitor component to a string, using frame average values. More...

virtual std::string	toStringShort (int sampleIndex=0) const
	Dumps name and value of monitor point as a short string (name=value). More...

virtual void	updateFrameAverage (ScratchAverages &scratchAvgs)=0
	Abstract method that updates the average value/validity for the frame. More...

std::string	valuetypeToString () const
	Get a string representation for the datatype of this monitor point. More...

bool	warnHighDefaultIsSet () const
	Returns true if a default value was set for warnHigh for this monitor point. More...

bool	warnLowDefaultIsSet () const
	Returns true if a default value was set for warnLow for this monitor point. More...

virtual	~MonitorPoint ()
	Destructor. More...

Public Member Functions inherited from carma::monitor::MonitorComponent
const std::string &	getCanonicalName () const
	Get the canonical component name. More...

virtual const std::string &	getDescription () const
	Get the verbose description of the monitor component. More...

virtual const std::string &	getLongName () const
	Get the long name of the monitor component. More...

virtual const std::string &	getName () const
	Get the component name (leaf part of canonical name). More...

virtual std::string	getPhysicalDeviceName () const
	Get the physical device name, if one exists. More...

std::string	getPhysicalDeviceString () const
	Get the physical device name, if one exists, enclosed in parentheses. More...

std::string	getPhysicalName () const
	Get the physical name, which is location.device.component or if there is no associated physical device it is just component name. More...

virtual const std::string &	getShortName () const
	Get the short name of the monitor component. More...

virtual bool	isSubsystem () const
	Check if the component is a MonitorSubsystem. More...

	MonitorComponent (const std::string &name)
	Constructor. More...

bool	operator!= (const MonitorComponent &component) const
	Checks if components are not equal. More...

virtual void	setCanonicalName (const std::string &parents)
	Recursively set the canonical component name for this and all below. More...

void	setDescription (const std::string &text)
	Set the verbose description of the monitor component. More...

void	setLongName (const std::string &name)
	Set the long name of the monitor component. More...

void	setName (const std::string &name)
	Set the leaf part of the canonical name of the monitor component. More...

void	setShortName (const std::string &name)
	Set the short name of the monitor component. More...

void	setShortName (const std::string &name, int index)
	Set the short name of the monitor component, with an index appended. More...

virtual std::string	transportStatisticsToString (bool canonical=false) const
	Dump end-toe-end transport statistics (if available). More...

virtual	~MonitorComponent ()
	Destructor. More...

Additional Inherited Members
Public Types inherited from carma::monitor::MonitorPoint
enum	BLANKING_FLAGGING { UNDETERMINED, OK, BLANKED, FLAGGED, BLANKED_FLAGGED, MAX_BLANKING_FLAGGING }
	Blanking/flagging status of the data. More...

enum	MONITOR_POINT_TYPE { MONITOR, CONTROL }
	Monitor point type. More...

enum	VALIDITY { INVALID_NO_DATA, INVALID_NO_HW, INVALID_HW_BAD, VALID, VALID_NOT_CHECKED, VALID_GOOD, VALID_WARNING, VALID_ERROR, VALID_WARNING_LOW, VALID_WARNING_HIGH, VALID_ERROR_LOW, VALID_ERROR_HIGH, MAX_VALIDITY }
	Validity states of the data value. More...

Public Types inherited from carma::monitor::MonitorComponent
enum	ARCHIVE_PRIORITY { VITAL, USEFUL, NORMAL, DEBUG, VERBOSE, DEFAULT, DONTARCHIVE }
	Archiving priority. More...

Static Public Member Functions inherited from carma::monitor::MonitorPoint
static std::string	blankingFlaggingToString (BLANKING_FLAGGING flag)
	Get a string representation for a blanking/flagging flag. More...

static bool	isValid (VALIDITY validity)
	Check for any of the valid states. More...

static std::string	monitorPointTypeToString (MONITOR_POINT_TYPE monitorPointType)
	Get a string representation for a monitor point type. More...

static std::string	validityToString (VALIDITY validity)
	Get a string representation for a validity. More...

static std::string	valuetypeToString (MonitorValueType valuetype)
	Get a string representation for a valuetype. More...

Static Public Member Functions inherited from carma::monitor::MonitorComponent
static std::string	archivePriorityToString (MonitorComponent::ARCHIVE_PRIORITY priority)
	Get a string representation for an archive priority. More...

static std::string	convertAllLower (std::string name)
	Convert a name to all lower case. More...

Protected Member Functions inherited from carma::monitor::MonitorPointNumeric
double	computeFrameAverage (MonitorPointAverageNumeric &scratchAvg)

VALIDITY	getAveValidityNumeric () const

BLANKING_FLAGGING	getBlankingFlaggingNumeric () const

	MonitorPointNumeric (const ::std::string &name, MonitorValueType valuetype, MONITOR_POINT_TYPE monitorPointType=MONITOR)

Protected Member Functions inherited from carma::monitor::MonitorPoint
void	clearAllDefaults ()
	Clears all default threshold values (makes them zero) and sets thresholdFlags_ to THRESHOLD_NONE_SET. More...

bool	getAveBoolean () const

char	getAveChar () const

::std::complex< float >	getAveComplex () const

double	getAveDouble () const

float	getAveFloat () const

long	getAveLong () const

long	getAveSerialNo () const

short	getAveShort () const

std::string	getSnapshotAverageToString () const

bool	getValueBoolean (int sampleIndex) const

char	getValueChar (int sampleIndex) const

::std::complex< float >	getValueComplex (int sampleIndex) const

double	getValueDouble (int sampleIndex) const

float	getValueFloat (int sampleIndex) const

long	getValueLong (int sampleIndex) const

long	getValueSerialNo () const

short	getValueShort (int sampleIndex) const

MonitorValueStringChunk	getValueStringChunk (int sampleIndex) const

bool	isEqualTo (const MonitorPoint &mp) const

void	setAve (char d) const

void	setAve (short d) const

void	setAve (long d) const

void	setAve (bool d) const

void	setAve (float d) const

void	setAve (double d) const

void	setAve (const ::std::complex< float > &d) const

void	setAveSerialNo (long d) const

void	setValue (char d, int sampleIndex) const

void	setValue (short d, int sampleIndex) const

void	setValue (long d, int sampleIndex) const

void	setValue (bool d, int sampleIndex) const

void	setValue (float d, int sampleIndex) const

void	setValue (double d, int sampleIndex) const

void	setValue (const ::std::complex< float > &d, int sampleIndex) const

void	setValueSerialNo (long d) const

void	setValuesStringChunksAndValidities (const MonitorValueStringChunk *chunks, int numChunks, VALIDITY validity) const

Protected Attributes inherited from carma::monitor::MonitorPoint
bool	timeSeries_

short	width_

Protected Attributes inherited from carma::monitor::MonitorComponent
bool	debug_

Related Functions inherited from carma::monitor::MonitorComponent
std::ostream &	operator<< (std::ostream &os, const MonitorComponent &component)

Detailed Description

Base class for all real value monitor points (float, double, etc).

Used as a marker for these sub-classes; provides no unique functionality

Definition at line 1120 of file monitorPointSpecializations.h.

Constructor & Destructor Documentation

carma::monitor::MonitorPointReal::MonitorPointReal	(	const std::string &	name,
		MonitorValueType	monitorValueType,
		MONITOR_POINT_TYPE	monitorPointType = `MONITOR`
	)

Constructor.

Parameters

name	monitor point name
monitorValueType	the type of real

virtual carma::monitor::MonitorPointReal::~MonitorPointReal ( )

virtual

Destructor.

Nothing fancy here - the dynamic storage is managed elsewhere.

Definition at line 1136 of file monitorPointSpecializations.h.

The documentation for this class was generated from the following file:

carma/monitor/monitorPointSpecializations.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation
