Typed class for managing connections to DOs. More...

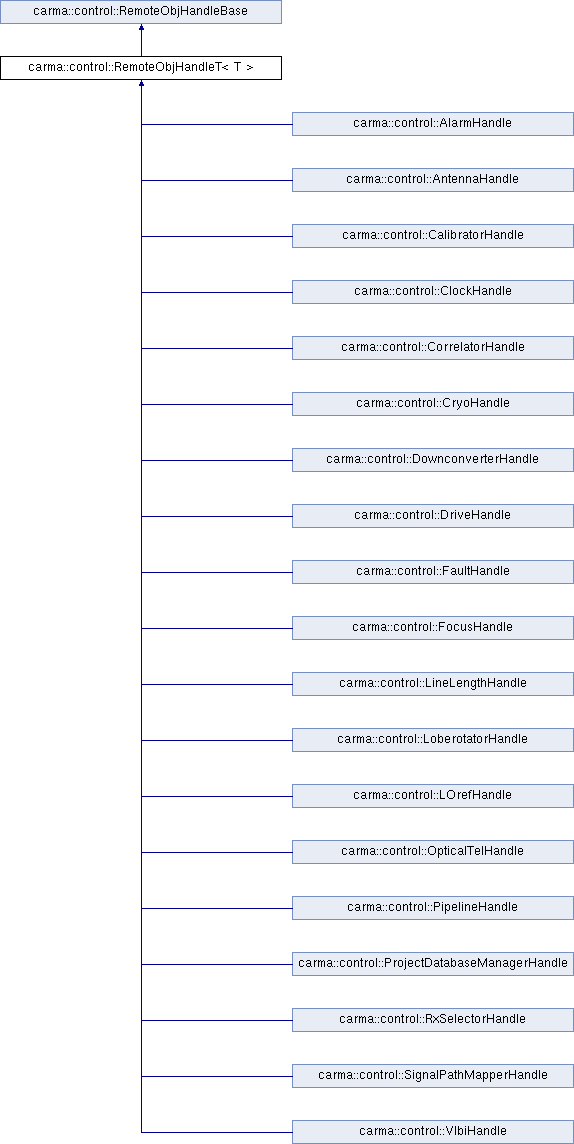

Inheritance diagram for carma::control::RemoteObjHandleT< T >:

Public Member Functions
template<typename S >
S::_var_type	narrowedRemoteObj () const
	Returns remote object handle as var. More...

T::_var_type	remoteObj () const
	Returns remote object handle as var. More...

	RemoteObjHandleT (const ::std::string &doName, monitor::MonitorPointBool mpReachable, const monitor::MonitorSubsystem subsystem, monitor::MonitorSystem *system, bool defaultLogIfNotReachable, bool defaultLogSentCommands)
	Constructor. More...

virtual	~RemoteObjHandleT ()
	Destructor. More...

Public Member Functions inherited from carma::control::RemoteObjHandleBase
bool	attemptToReconnectIfNeeded ()
	Try reconnect to the DO if needed. More...

::std::string	doName () const
	get the DO name More...

void	forceFullReconnect ()
	Force a full re-lookup of the DO by name. More...

bool	isObjReachable ()
	If state is 'not reachable' and monitor system is current, tries to reconnect. More...

bool	isObjReachable (bool logIfNotReachable)

	RemoteObjHandleBase (const ::std::string &doName, monitor::MonitorPointBool mpReachable, const monitor::MonitorSubsystem subsystem, monitor::MonitorSystem *system, bool defaultLogIfNotReachable, bool defaultLogSentCommands)
	Constructor. More...

virtual	~RemoteObjHandleBase ()
	Destructor. More...

Protected Member Functions
virtual bool	resolveObjRef ()

Protected Member Functions inherited from carma::control::RemoteObjHandleBase
bool	getDefaultLogIfNotReachable () const

bool	getDefaultLogSentCommands () const

void	invalidateObjRef ()

void	invalidateObjRefIfNeededForCaught ()

void	logException (const ::std::string &callString, const ::std::string &exString) const

void	logSentCommand (const ::std::string &callString, const double mjd) const

void	logSentCommand (const ::std::string &callString, const double mjd, const ::std::string &subDoName) const

void	logSentCommandIfNeeded (const ::std::string &callString, const double mjd) const

void	logSentCommandIfNeeded (const ::std::string &callString, const double mjd, const ::std::string &subDoName) const

void	markObjRefValid ()

void	processException (const ::std::string &callString, const ::CORBA::Exception &corbaException)

void	throwBadRemoteObjAccess () const

void	throwIfObjRefIsNotValid () const

Friends
class	RemoteObjMethodFunctorBase< T >

Detailed Description

Typed class for managing connections to DOs.

Definition at line 156 of file RemoteObjHandleT.h.

Constructor & Destructor Documentation

template<typename T >

carma::control::RemoteObjHandleT< T >::RemoteObjHandleT	(	const ::std::string &	doName,
		monitor::MonitorPointBool *	mpReachable,
		const monitor::MonitorSubsystem *	subsystem,
		monitor::MonitorSystem *	system,
		bool	defaultLogIfNotReachable,
		bool	defaultLogSentCommands
	)

explicit

Constructor.

Constructs reference to a DO using the name Resolves name using NameService and sets handle.

Parameters

doName,name	bound to DO's IOR in NameService
monitor::MonitorPointBool	* const, pointer to boolean monitor point which indicates whether DO is currently contactable.
monitor::MonitorSubsystem	* const, pointer to monitor subsystem associated with this handle - used as an indicator of subsystem health.

Definition at line 248 of file RemoteObjHandleT.h.

template<typename T >

carma::control::RemoteObjHandleT< T >::~RemoteObjHandleT ( )

virtual

Destructor.

Releases all DO references.

Definition at line 267 of file RemoteObjHandleT.h.

template<typename T >

template<typename S >

S::_var_type carma::control::RemoteObjHandleT< T >::narrowedRemoteObj ( ) const

Returns remote object handle as var.

Definition at line 201 of file RemoteObjHandleT.h.

template<typename T >

T::_var_type carma::control::RemoteObjHandleT< T >::remoteObj ( ) const

Returns remote object handle as var.

Definition at line 278 of file RemoteObjHandleT.h.

The documentation for this class was generated from the following file:
